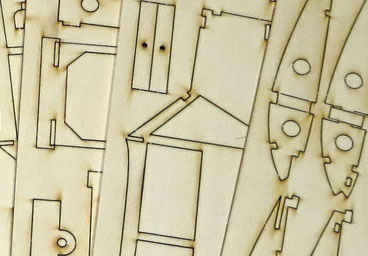

Laser-Cut R/C Kits

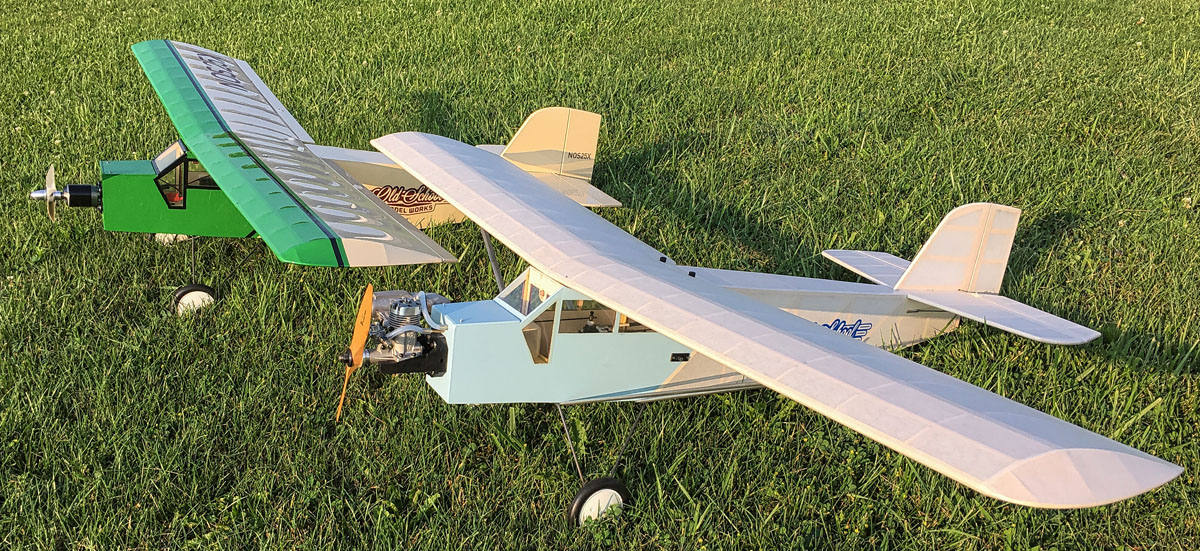

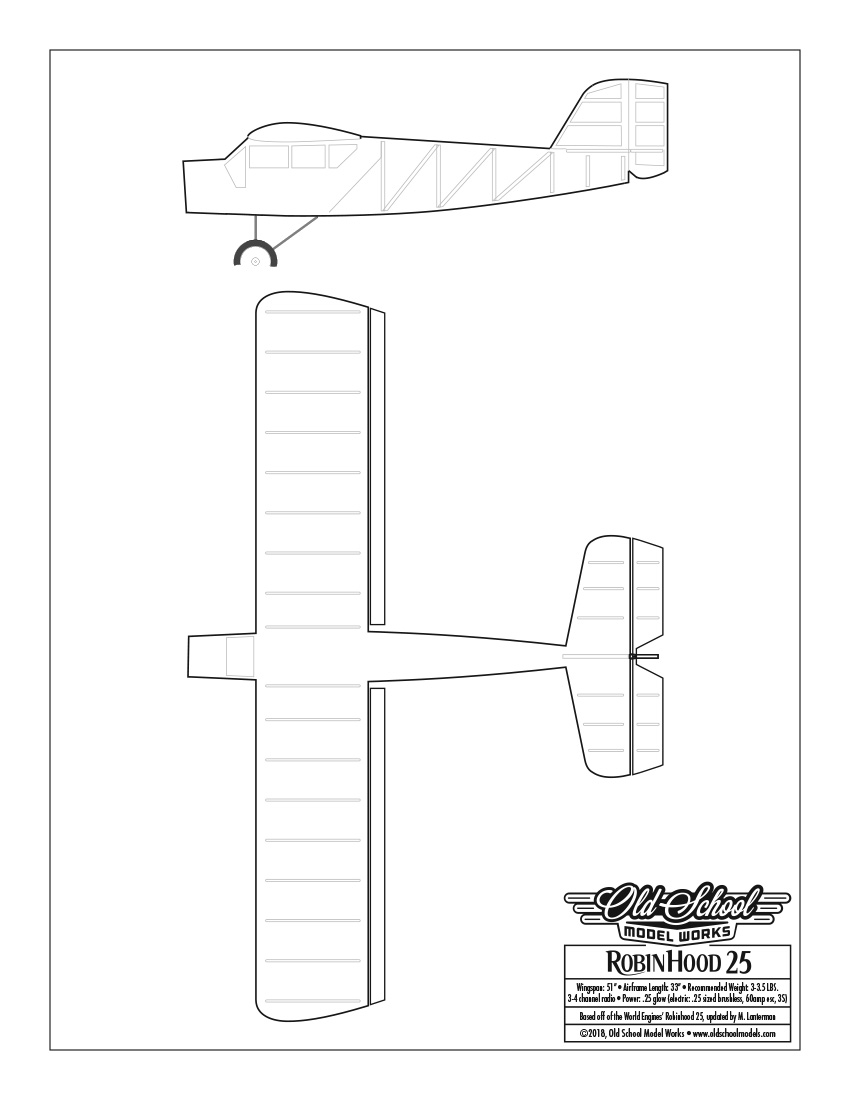

The Robinhood is a fun-scale version of the Curtiss Robin built back in the 1920's. Originally marketed through World Engines, this model retains all the good, clean looks of the original and retains all the great flying characteristics that make a good sport airplane.

In the air, the Robinhood 25 is a true barnstormer. Don't mistake this for a 3-D hovering machine, and resist the urge to overpower it. The Robinhood 25 is at its best when cruising on a lazy afternoon or performing some gentle aerobatics. Also, there are no problems with mown-grass runway takeoffs and landings.

If you want to go truly "old school,"  it can be built for simple 3-channel control (rudder, elevator, and throttle). For even more control, the included ailerons can be made fully functional (4-channel control).

The Robinhood can be powered with either an electric or glow powerplant. We've designed the fuselage with a built-in hatch, so you have quick access to either your batteries or fuel tank.

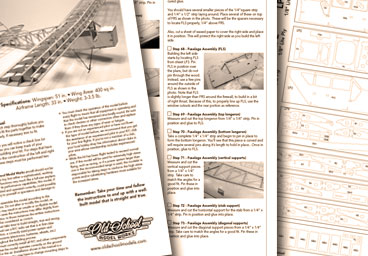

The wing is removable via two bolts from the top of the fuselage. Struts were a necessity on the full-scale Curtiss Robin but are optional for the Robinhood 25. Instructions are included on how to implement them if you'd like to give your Robinhood 25 a touch of Old-School elegance.

Our Robinhood 25 was independently reviewed by MBMrc. Check out the video report below...

Specifications:

Wingspan: 51 inches

Wing Area: 400 sq inches

Length (airframe only): 33 inches

Weight: 3-3.5 pounds

Radio:
• 3 or 4 channel system
• 4 40-70 in./oz. servos (Standard servos - similar to HS-311)
• 1 additional servo for throttle, if using a glow engine

Power:
• Electric (.25 equivalent brushless motor, 60 amp ESC, 3S LiPo)
• Glow (.20-.25 engine, 4-6 ounce tank, fuel tubing)

Thinking of going electric? Click the icon to the left for suggested motor, ESC, battery and prop combinations, courtesy of Innov8tive Designs.
