Old School Model Works : Bat

Turn. Twist. Evade.   Attack!

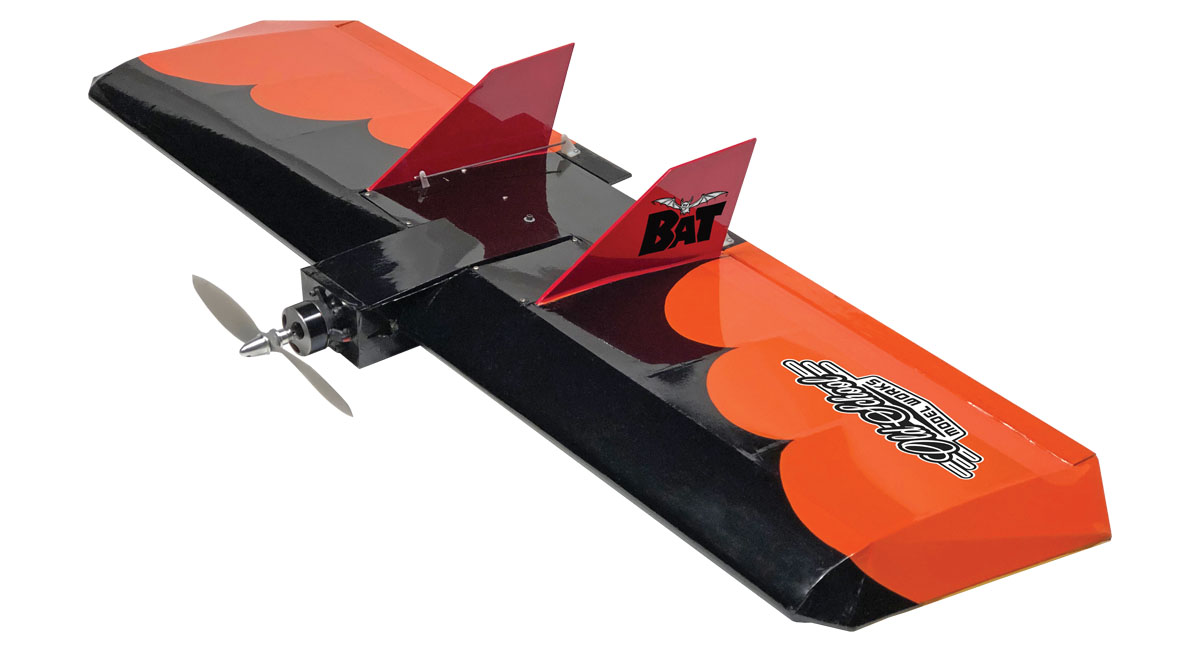

Our Bat is simplicity and excitement all at the same time. It is based off a 1970's World Engines kit and is a lot of fun to fly alone. But it's tons of fun to fly in groups.

Thanks to precision laser-cutting, and the low parts count, this allows you to completely assemble the airframe in just a few hours.

Between the twin fins, there is an expansive internal area to allow in the installation of a variety of radio gear, as well as batteries (or fuel tank). This is all accessible via three hatches - the two servo hatches and a center hatch with a quick-release latch setup.

Parts are included to build the Bat with either an electric or glow powerplant. And it's one of the few designs in our lineup where you can overpower it a little without too much extra work.

We've had great fun with the recommended power systems, but as long as you keep a good eye on the C.G. (and lateral balance) you can strap on a little more power and streak through the skies.
Obviously, some common sense needs to be applied here, but the structure is strong and can withstand a little overpowering with no problems.

Specifications:

Wingspan: 37.25 inches

Wing Area: 360 square inches

Length (airframe only): 10.45" (glow), 11.5" (electric)

Weight: 22-28 ounces (RTF)

Radio:
• 3 channel system (with elevon mixing)
• 2 channel (Sub-Micro servos, similar to HS-5065MG)
• 1 for throttle (if using a glow engine)

Power:
• Electric: 250+ watt brushless setup, 3s lipo
• Glow (.09-.15 engine, 2 ounce tank, fuel tubing)

Thinking of going electric? Click the icon to the left for suggested motor, ESC, battery and prop combinations, courtesy of Innov8tive Designs.



All Old School Model Works kits feature:

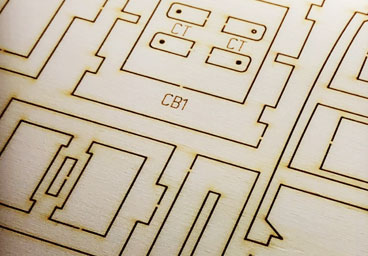

Precision laser-cut parts

Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

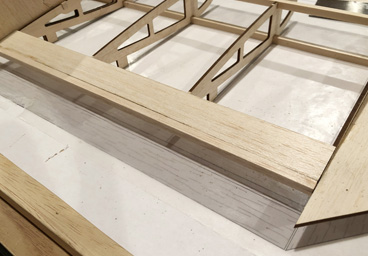

Interlocking parts

We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

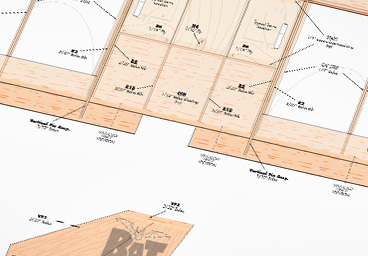

Rolled Plans

Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.

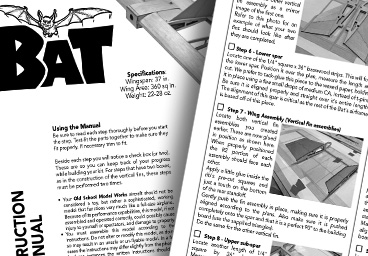

Illustrated Instructions

A step by step manual with plenty of photo illustrations is included in each kit. We also provide links to online, clear, hi-rez photos for each step.

Click here to download a copy of the bat manual.
