Old School Model Works : Javelin

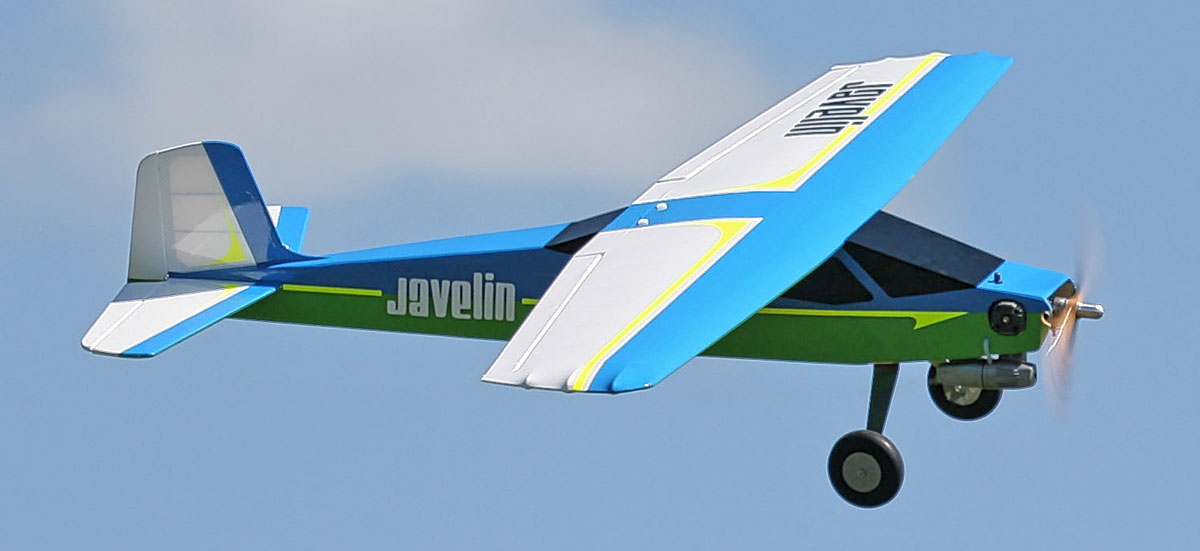

An all-around classic that flies as great as it looks.

Imagine an easy-to-build kit that has outstanding high-speed performance as well as dependable low-speed stability. Now imagine it in a great-looking design, and you’ve just described our Javelin.

Bolt on a .25-sized engine and enjoy gentle flying and barnstorming. max it out with a .51-sized engine and tear up the skies with high-performance aerobatics.

All of this comes in a great looking design that is remarkably easy to build, thanks to our innovative design techniques and precision laser cut parts.

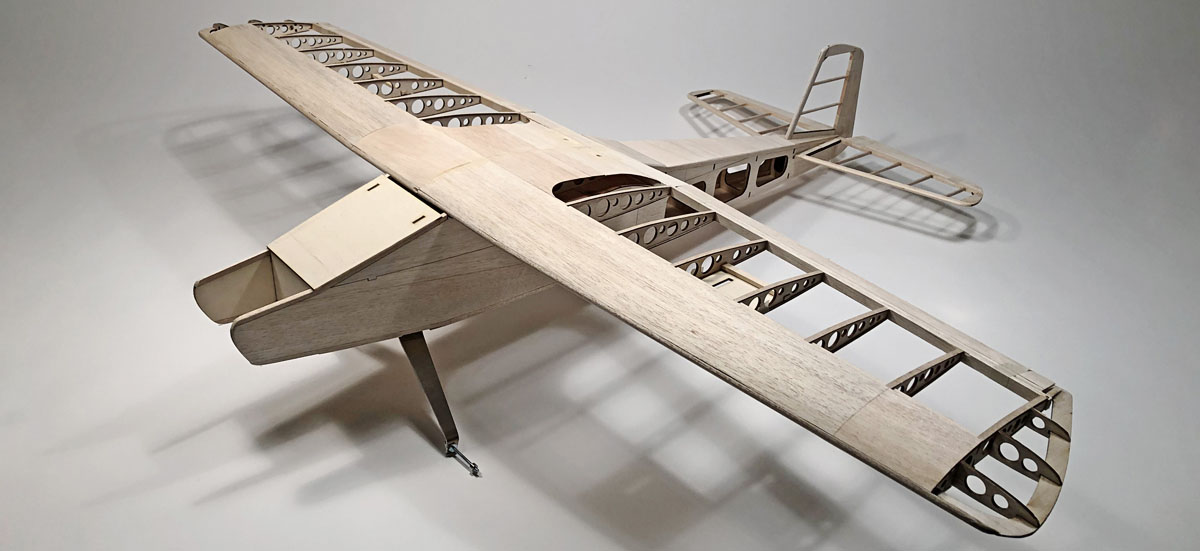

Because of the interlocking design and high quality laser cutting of the parts, the Javelin is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts were designed to align properly with a minimum of fuss and alignment tools.

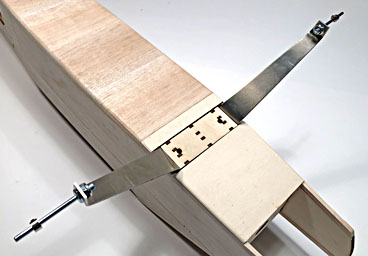

The Javelin utilizes a first for OSMW kits - a built-up main gear box. This is extremely strong, yet lightweight at the same time.

The wing is removable, giving access to the extra-large cabin area. From there, you have easy access to install most any brand of radio and control linkages.

Up-front, we’ve designed in a large hatch that covers the spacious battery/tank compartment. This area will easily handle larger 4s packs and 12 ounce tanks.

Our Javelin was reviewed by Fitz Walker in Model Aviation magazine. Check out his video report below...

Whether you choose to power your Javelin with electric or glow power, we’ve got you covered. The firewall comes pre-etched with markings to aid in the mounting of the included motor mount. Glow engines can be mounted upright, side, or even inverted with little modification necessary.

Our Javelin was independently reviewed by MBMrc. Check out the video report below...

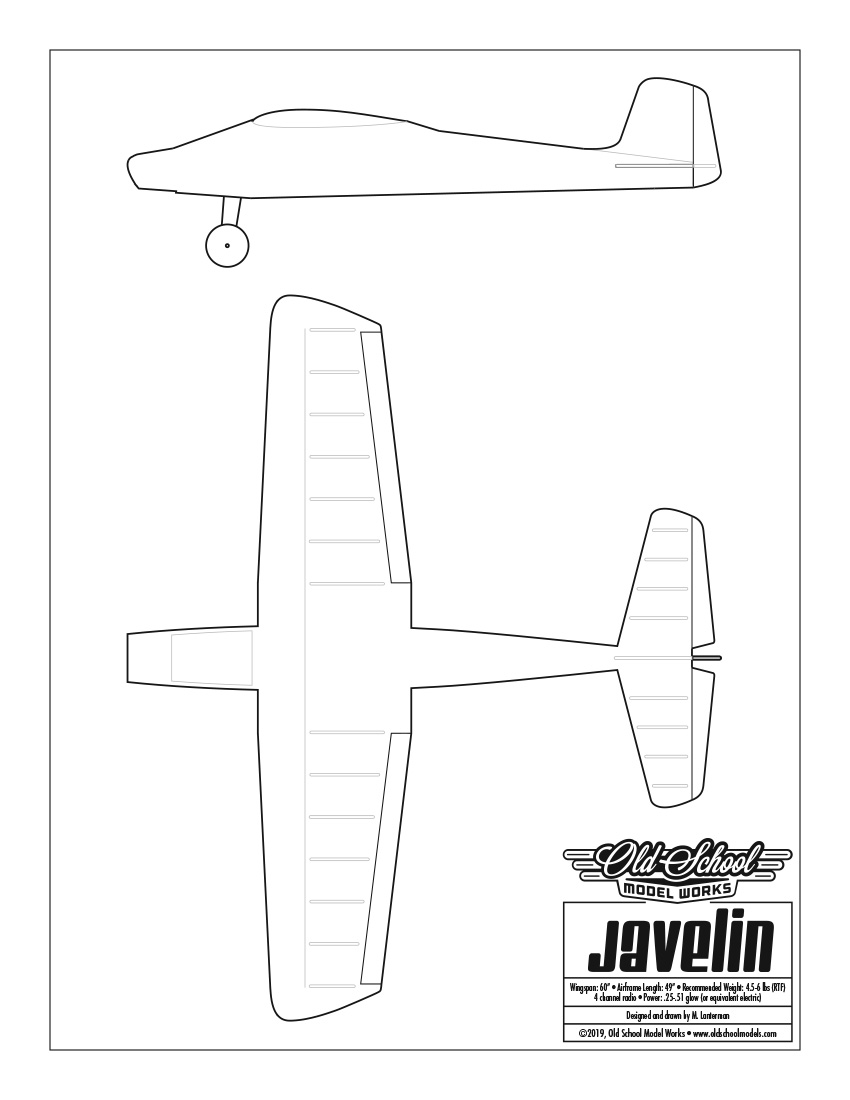

Specifications:

Wingspan: 60 inches

Wing Area: 710 sq inches

Length (airframe only): 49 inches

Weight: 4.5 - 6 pounds

Radio: 4 channel system
• 4 60+ in./oz. servos (Standard servos - similar to HS-422)
• 1 additional servo for throttle, if using a glow engine

Power:
• Glow (.25-.51 engine, 6-10 ounce tank, fuel tubing)
• Electric (equivalent brushless motor, 3-4s LiPo)

Thinking of going electric? Click the icon to the left for suggested motor, ESC, battery and prop combinations, courtesy of Innov8tive Designs.
WARNING: This product (wheel collars) can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information click here.



All Old School Model Works kits feature:

Precision laser-cut parts

Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

Interlocking parts

We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

Rolled Plans

Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.

WEB-LOCK Wing Construction

Our exclusive wing design and construction techniques give you everything you need to easily build a straight and true wing with a minimum amount of fuss.

Illustrated Instructions

A step by step manual with plenty of photo illustrations is included in each kit. We also provide links to online, clear, hi-rez photos for each step.

Click here to download a copy of the Javelin manual.

Pre-Bent Landing Gear

Bending your own landing gear is hard. So that's why we include pre-bent main landing gear wire ready for you to assemble.
